VERTICAL MULTISTAGE PUMPS AFP-MV SERIES 50Hz & 60Hz
or 4 interest-free installments by Afterpay. More Info
Cast iron, Ductile iron, SS, Duplex
Mechanical Sealed, Single Stage E3/4 teto
Motors long Coupled, DIN24255/24256
Description
Description

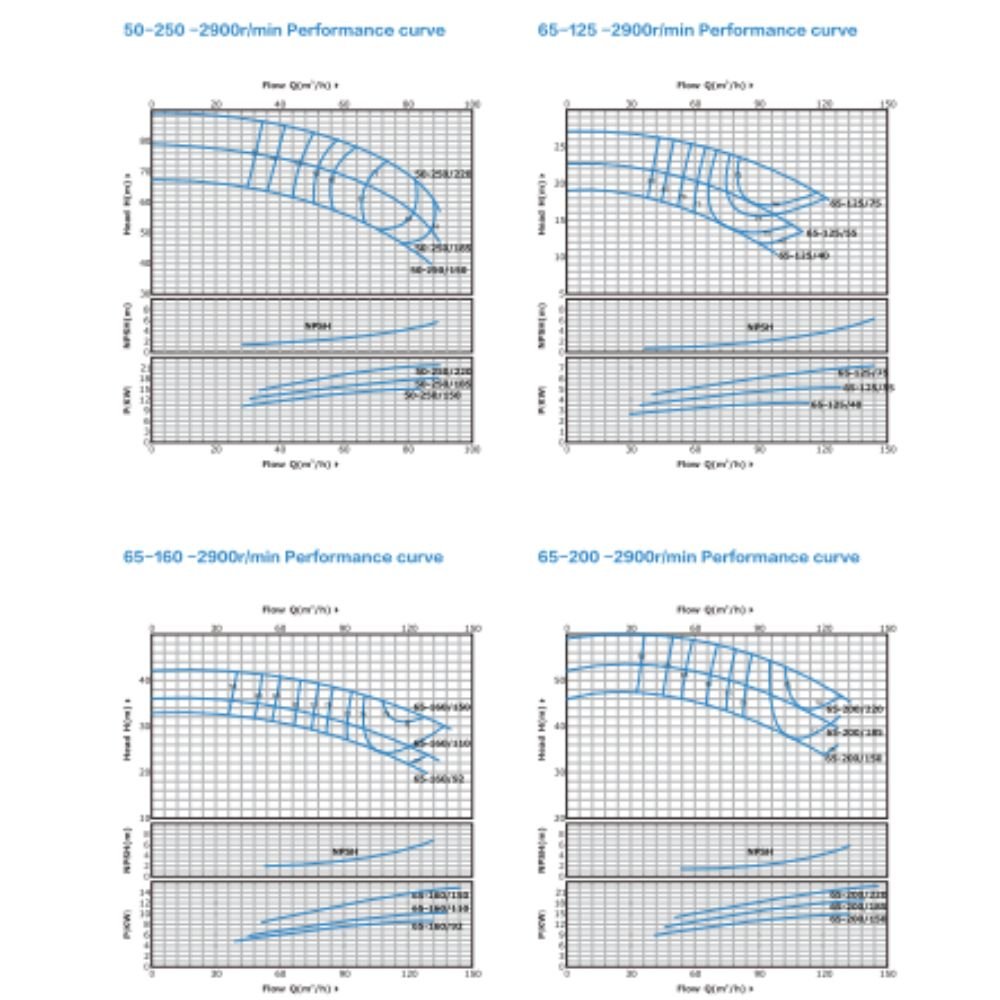

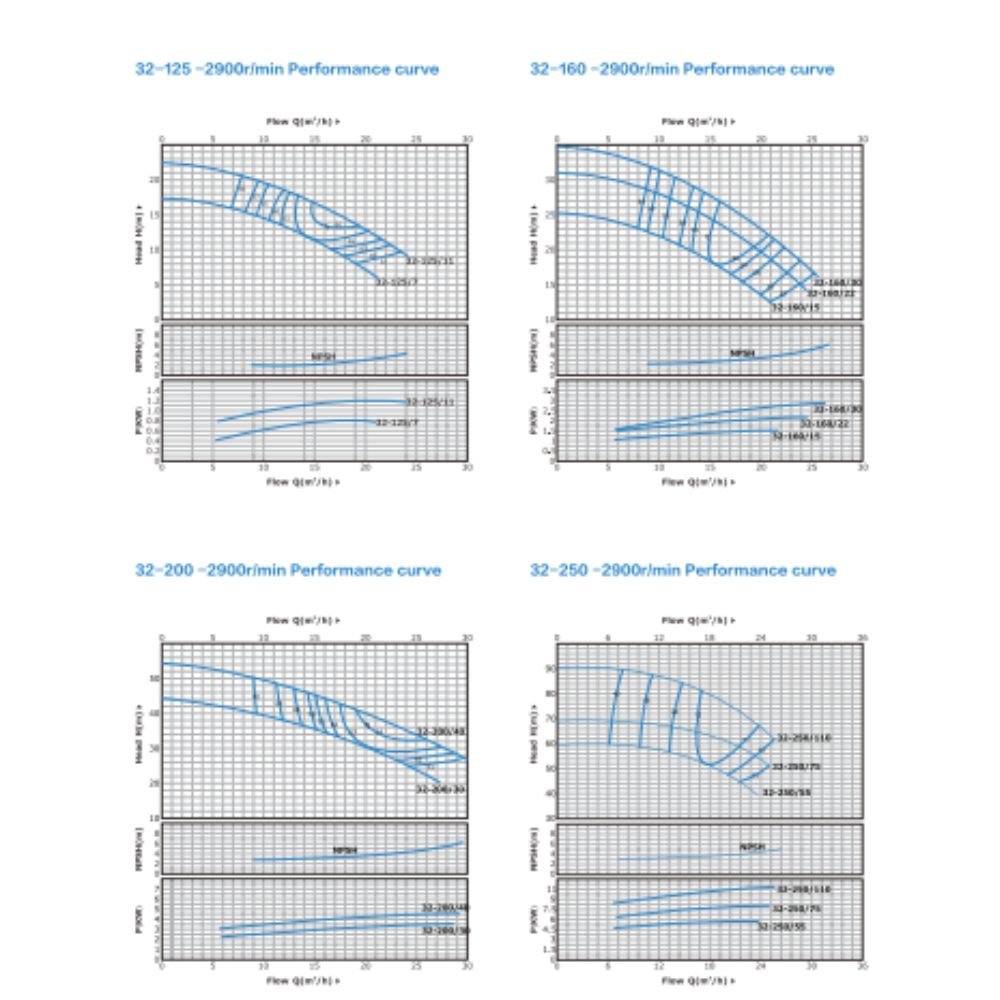

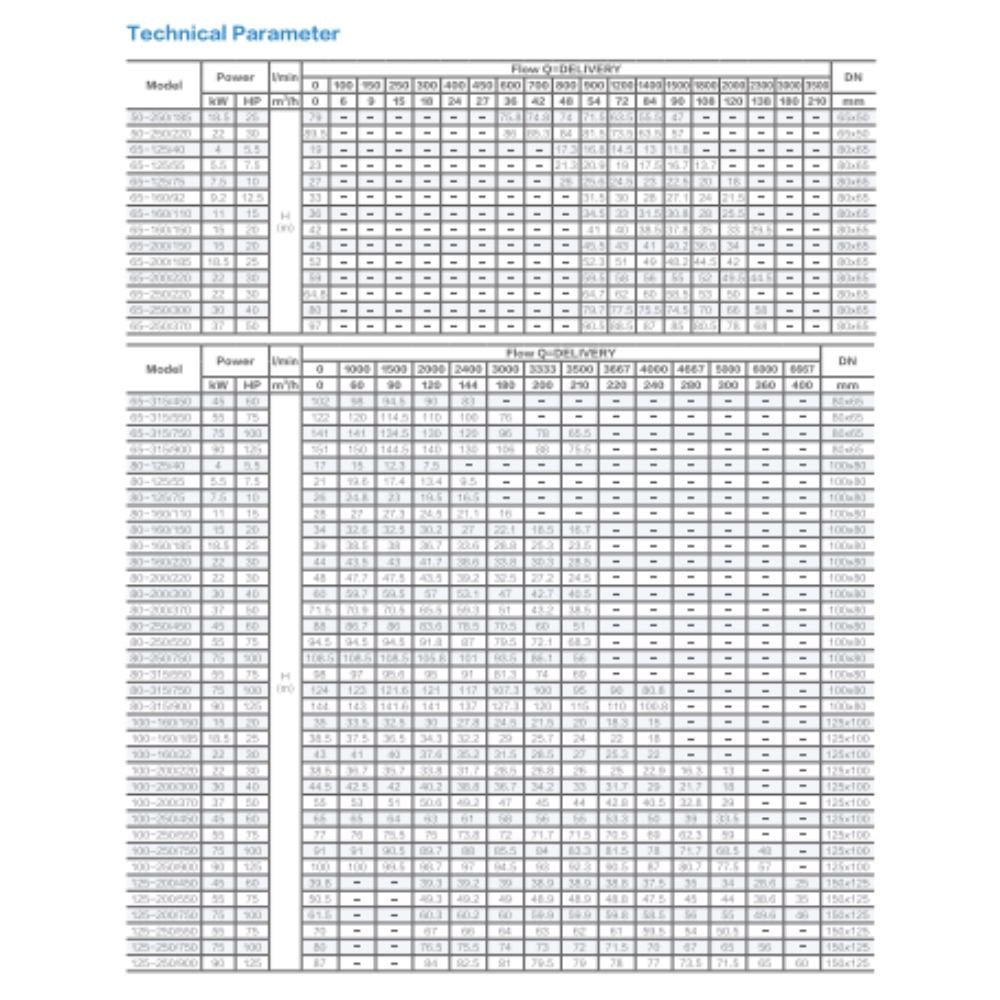

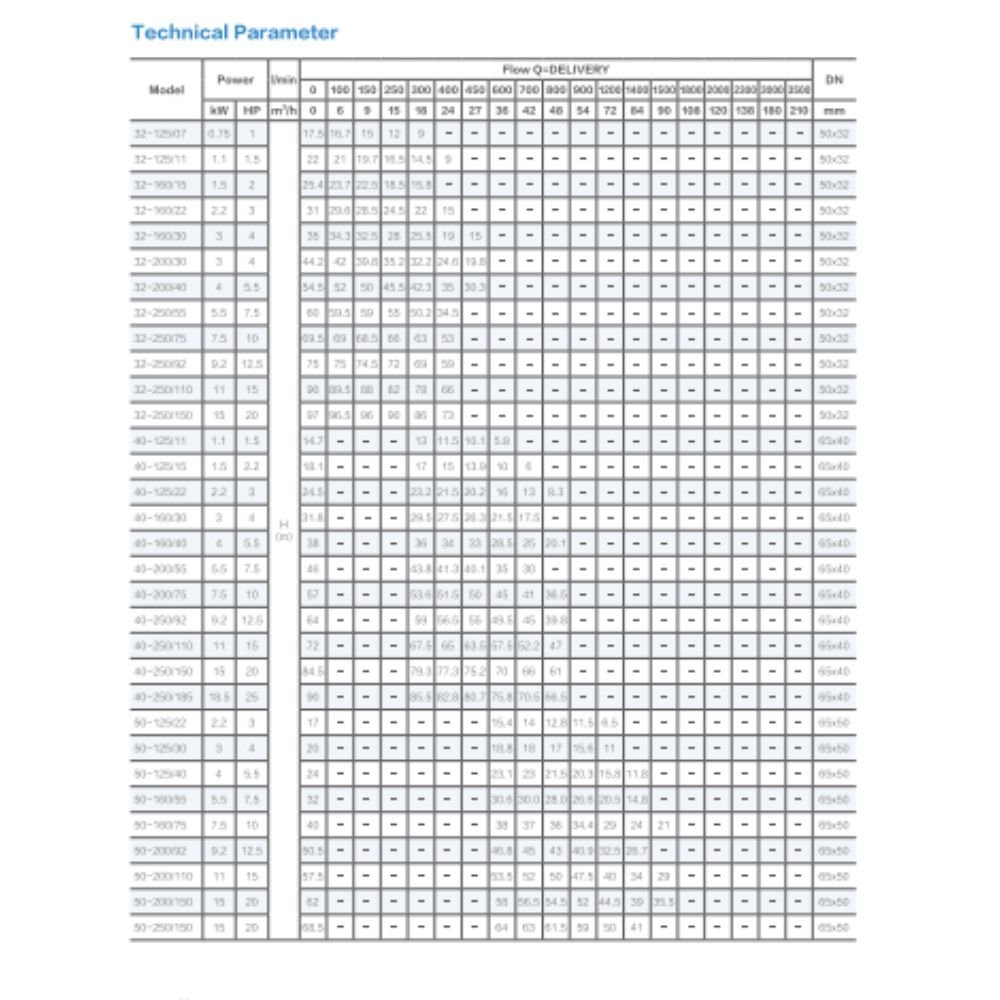

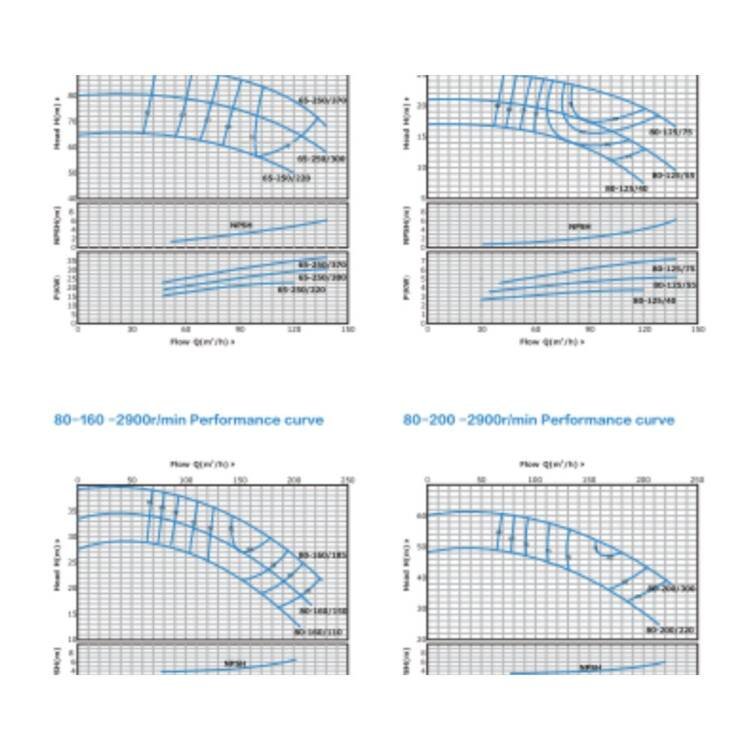

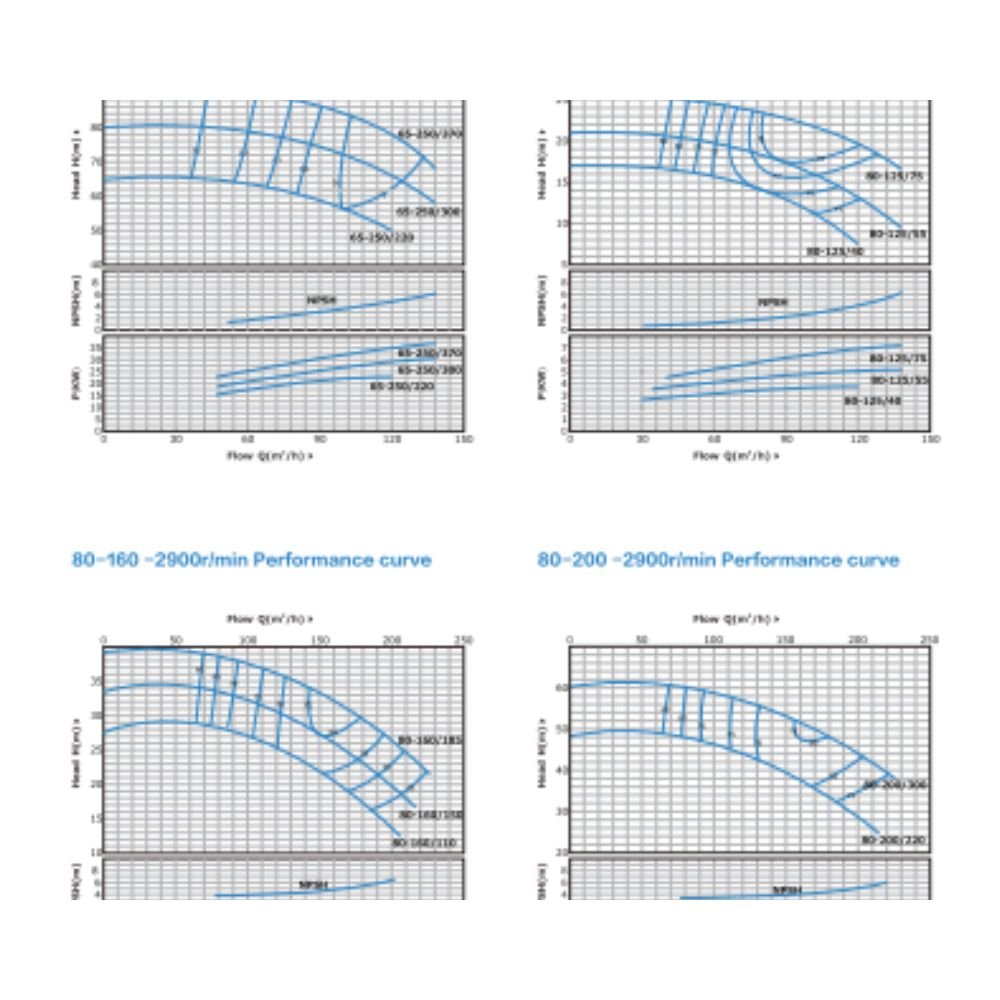

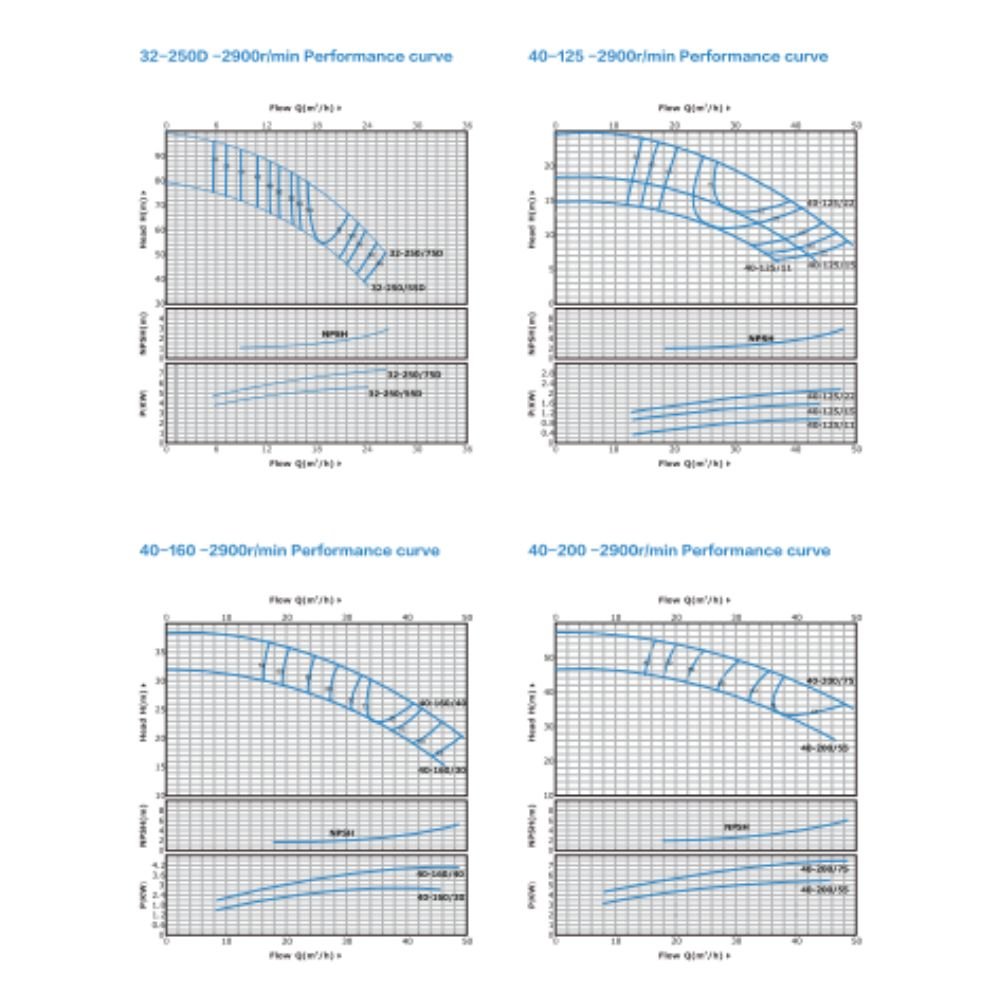

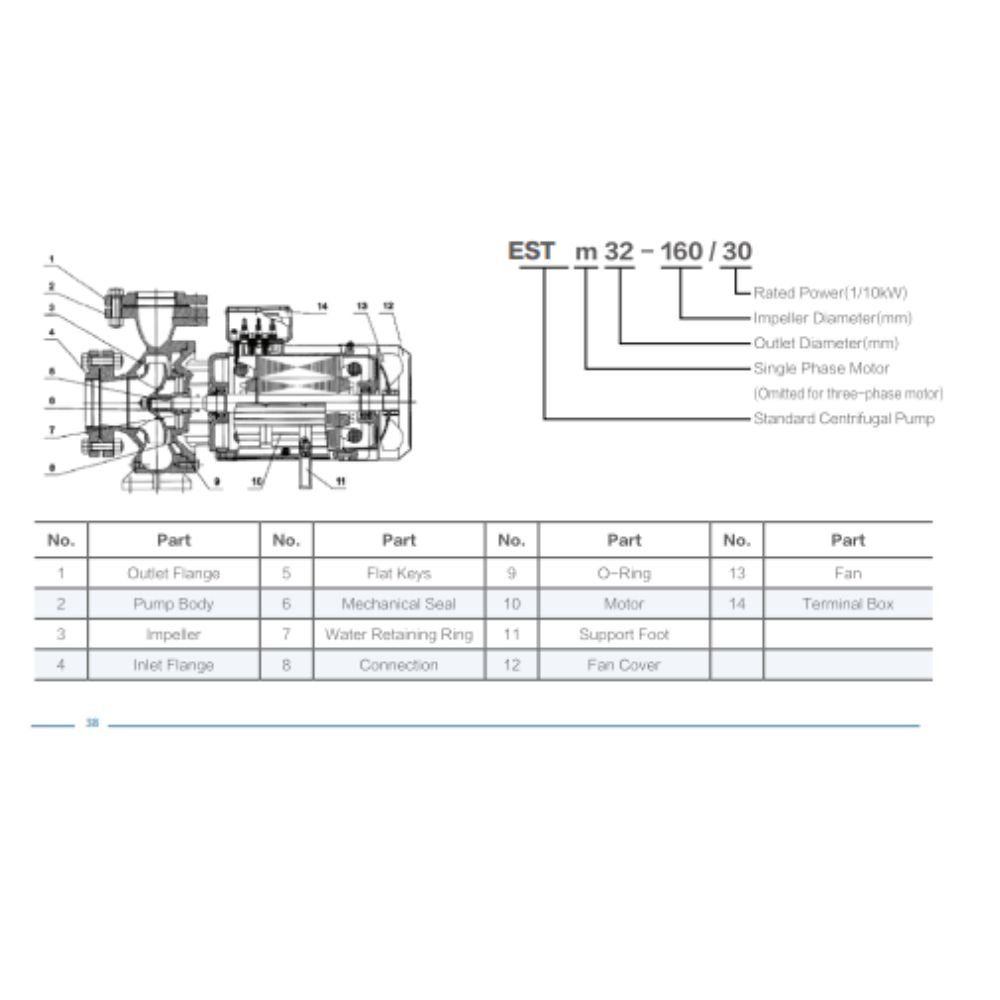

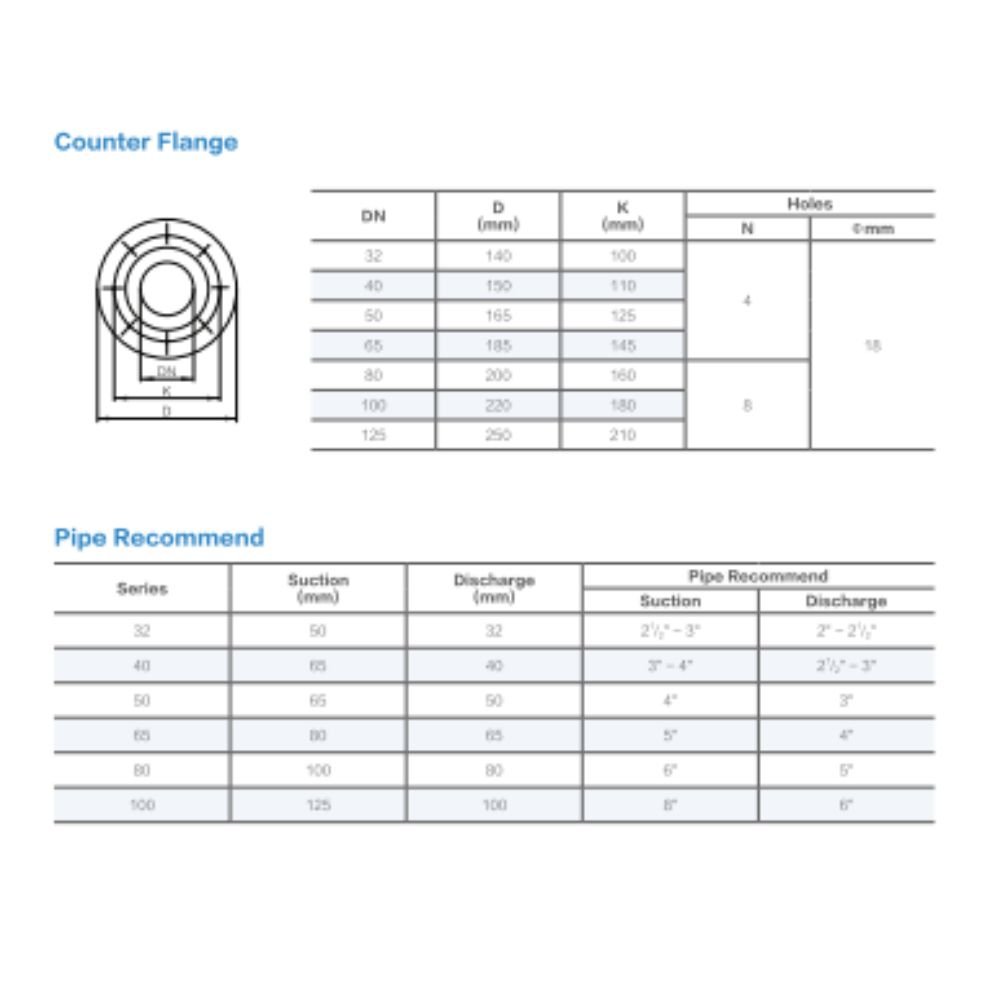

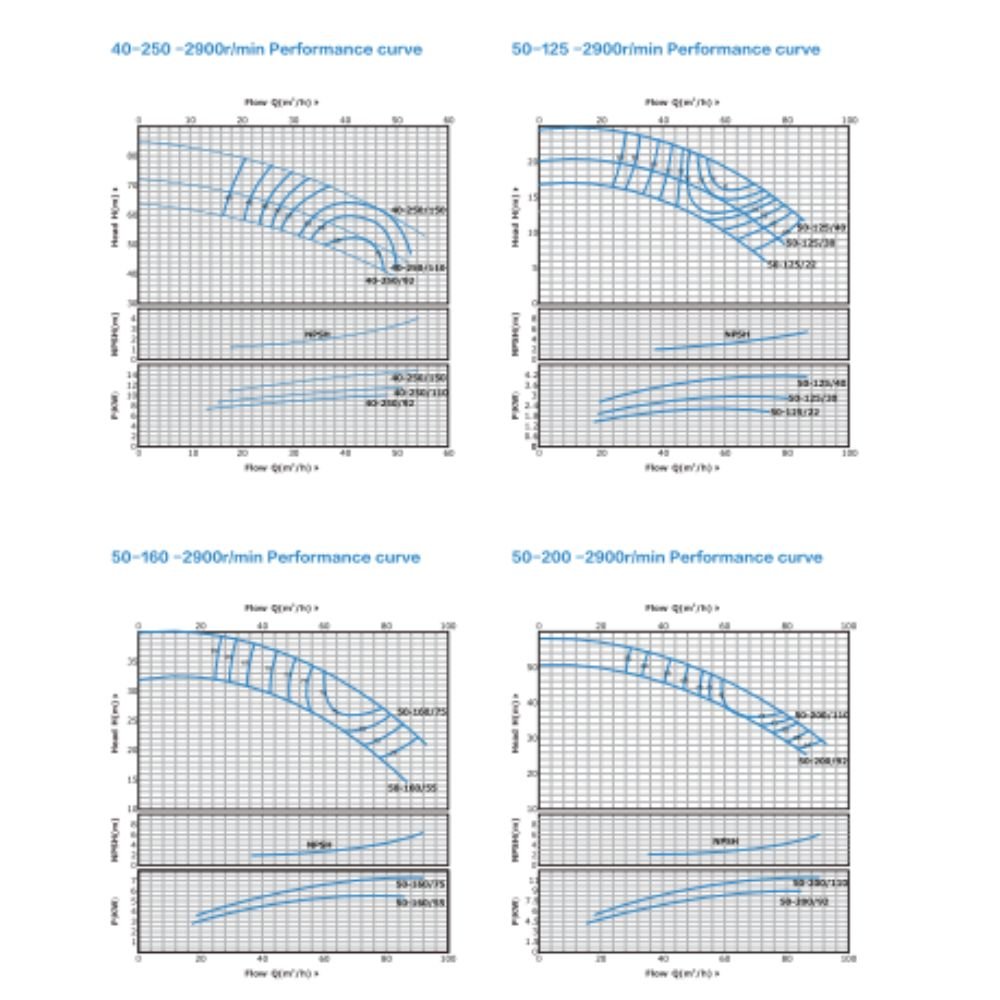

This robust single-stage end-suction pump is built for demanding industrial applications, featuring high-quality materials such as cast iron, ductile iron, and 55. Duplex stainless steel. Designed according to DIN 24255/24256 standards, it comes with a long-coupled TEFC motor and mechanical seal for reliable and efficient operation. With flow rates up to 2000 m³/h and heads reaching up to 165 mWC, it supports power ranges from 0.75 kW to 710 kW and operates at 3×400V, 50/60 Hz in compliance with EU547/2012 regulations. The pump handles operating pressures of 16 to 25 bar, with DIN connections from DN32 to DN300. Suitable for fluids up to 140°C, it performs effectively in ambient temperatures up to 40°C and liquid temperatures up to 70°C, making it ideal for large-scale water transfer, industrial systems, and process engineering.
