V180F-V250F PUMPS SUBMERSIBLE PUMPS
or 4 interest-free installments by Afterpay. More Info
Pump Body
: Cast iron
Motor Housing: AISI304 SS
Impeller
: Cast iron
Motor Shaft
: Carbon steel, AISI304 SS
Mechanical Seal: Ceramic/Graphite
Bearing
: 6201RZ/6201RZ(0.18KW8&0.25KW),6203R Z/6202RZ(0.45KW80.75KW),6204RZ/6202RZ (1.1K W&1.5KW),6205RZ/6203RZ(2.2KW)
Description
Description

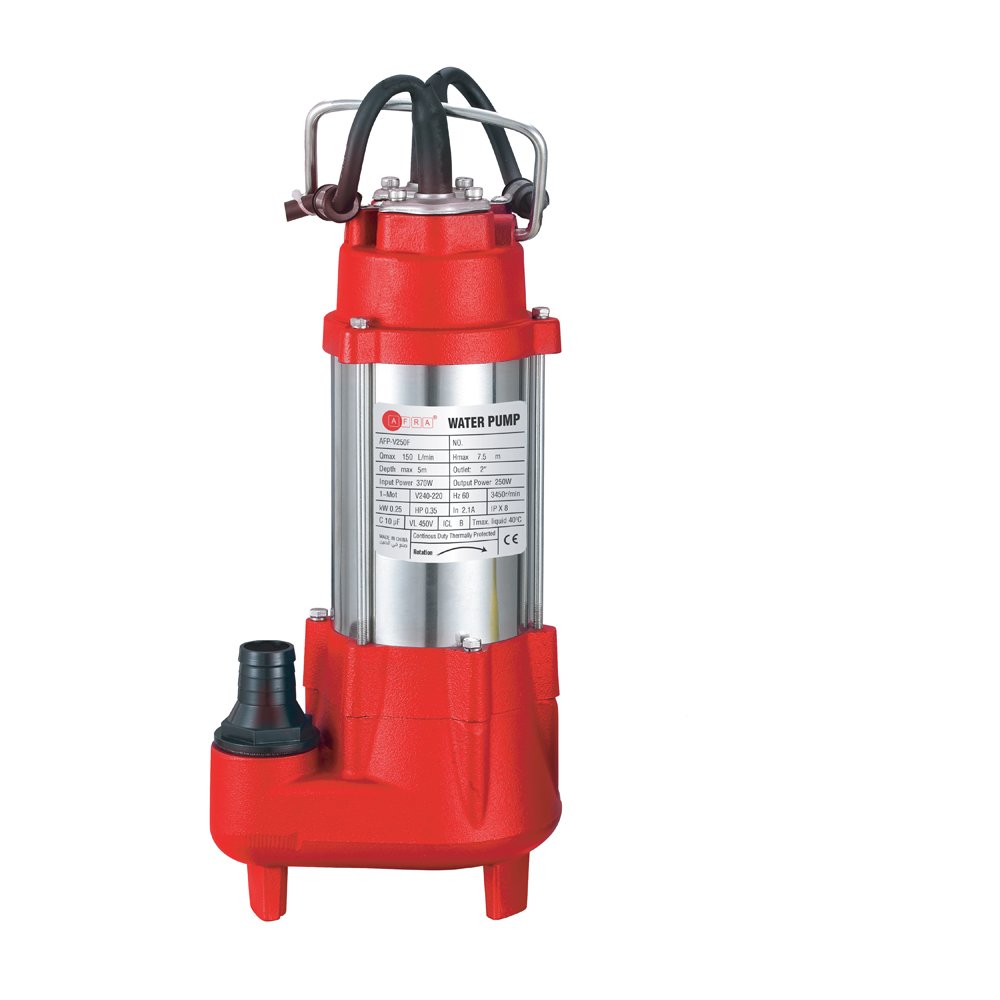

This submersible pump features a rugged cast iron pump body and impeller, complemented by a corrosion-resistant AISI 304 stainless steel motor housing for enhanced durability. The motor shaft is made of carbon steel with optional AISI 304 stainless steel for improved performance in wet and corrosive environments. A ceramic/graphite mechanical seal ensures leak-proof operation, while high-quality bearings are tailored to motor power—6201RZ for 0.18kW & 0.25kW, 6203RZ/6202RZ for 0.45kW to 0.75kW, 6204RZ/6202RZ for 1.1kW & 1.5kW, and 6205RZ/6203RZ for 2.2kW.
The pump is driven by a reliable two-pole induction motor, available in single-phase (220V/60Hz) and three-phase (380V/60Hz) configurations. It features insulation class B, IP68 protection, a built-in thermal protector, and is rated for continuous duty (S1), ensuring consistent performance in demanding conditions. Designed to operate in ambient temperatures up to +40°C and liquid temperatures up to +60°C, the pump supports a maximum suction depth of 5 meters—making it ideal for residential, agricultural, and light industrial water transfer applications.
