V1500-2200DF PUMPS SUBMERSIBLE PUMPS
or 4 interest-free installments by Afterpay. More Info
Pump Body
Cast iron
Motor Housing AISI304 SS
Impeller Cast iron
Motor Shaft
Carbon steel, AISI304 SS
Mechanical seal: Ceramic/Graphite
Bearing
6204RZ/6202RZ(1.1KW81.3KW&1.5KW), 6205RZ/6203RZ(1.88.2.2KW)
Description
Description

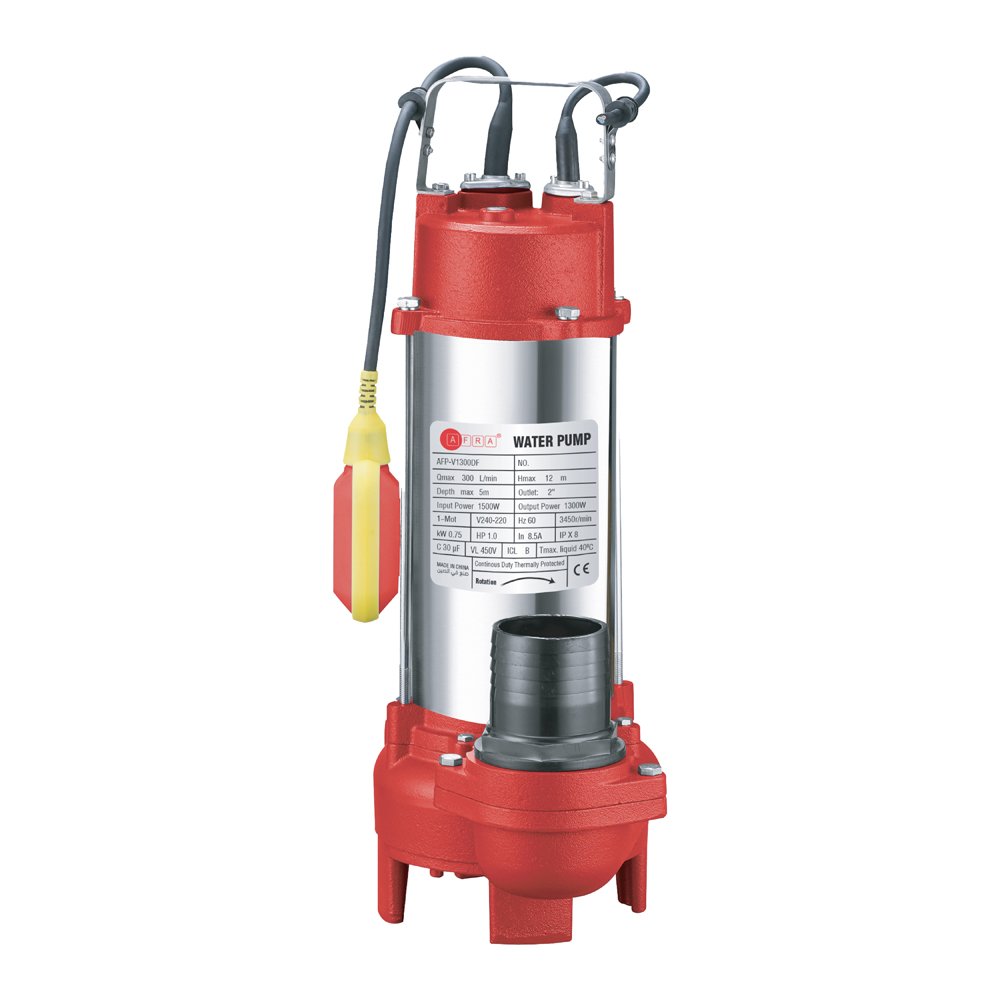

This submersible pump is designed with a durable cast iron pump body and impeller, paired with an AISI 304 stainless steel motor housing for superior corrosion resistance. The motor shaft is made from carbon steel with an AISI 304 stainless steel option, ensuring long-term reliability in wet environments. A ceramic/graphite mechanical seal provides dependable sealing, while high-quality bearings—6204RZ/6202RZ for 1.1kW to 1.5kW models, and 6205RZ/6203RZ for 1.8kW and 2.2kW models—support smooth and efficient operation.
Powered by a two-pole induction motor, the pump is available in both single-phase (220V/60Hz) and three-phase (380V/60Hz) configurations. The motor includes Class B insulation, IP68 protection, and a built-in thermal protector, making it suitable for continuous operation (S1 duty). Designed for ambient temperatures up to +40°C and liquid temperatures up to +60°C, the pump supports a maximum suction depth of 5 meters—making it ideal for clean water applications in residential, agricultural, and light industrial settings.
