V1100DF PUMPS SUBMERSIBLE PUMPS
or 4 interest-free installments by Afterpay. More Info
Pump Body
: Cast iron
Motor Housing
: AISI304 SS
Impeller
: Cast iron
Motor Shaft
: Carbon steel, AISI304 SS Mechanical
Mechanical Seal: Ceramic/Graphite
Bearing
: 6204RZ/6202RZ(1.1KW&1.3KW&1.5KW), 6205RZ/6203RZ(1.882.2KW)
Description
Description

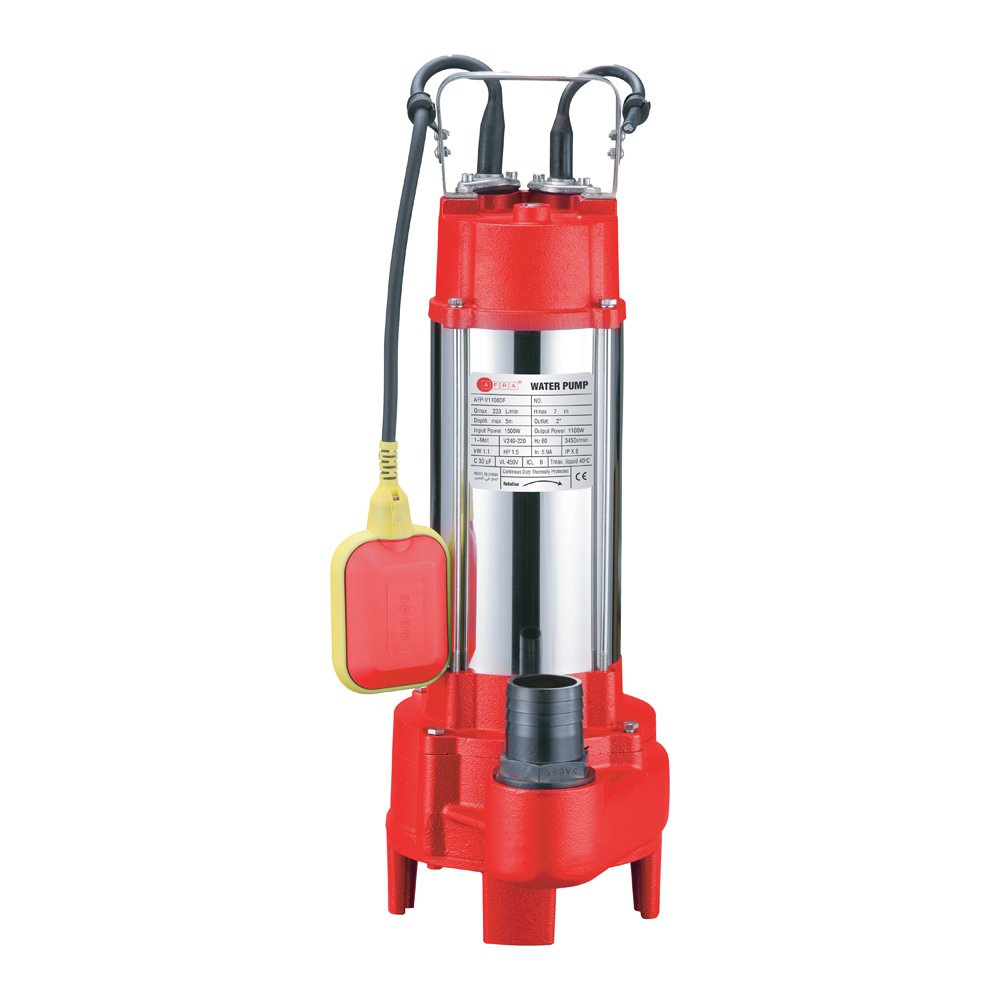

This submersible pump is engineered for strength, durability, and consistent performance in a variety of demanding applications. The pump body and impeller are made from heavy-duty cast iron for mechanical strength, while the motor housing is constructed from corrosion-resistant AISI 304 stainless steel. The motor shaft is made of carbon steel with optional AISI 304 stainless steel, providing excellent durability in fluid environments. The pump features a ceramic/graphite mechanical seal and high-quality bearings—6204RZ/6202RZ for 1.1kW, 1.3kW, and 1.5kW models, and 6205RZ/6203RZ for 1.8kW and 2.2kW models—ensuring smooth, efficient, and low-maintenance operation.
Powered by a two-pole induction motor, this pump supports both single-phase (220V/60Hz) and three-phase (380V/60Hz) power inputs. It includes Class B insulation, IP68 protection, a built-in thermal protector, and is rated for continuous duty (S1). Designed to handle ambient temperatures up to +40°C and liquid temperatures up to +60°C, with a maximum suction depth of 5 meters, this pump offers dependable and efficient performance in residential, agricultural, and light industrial water transfer applications.
