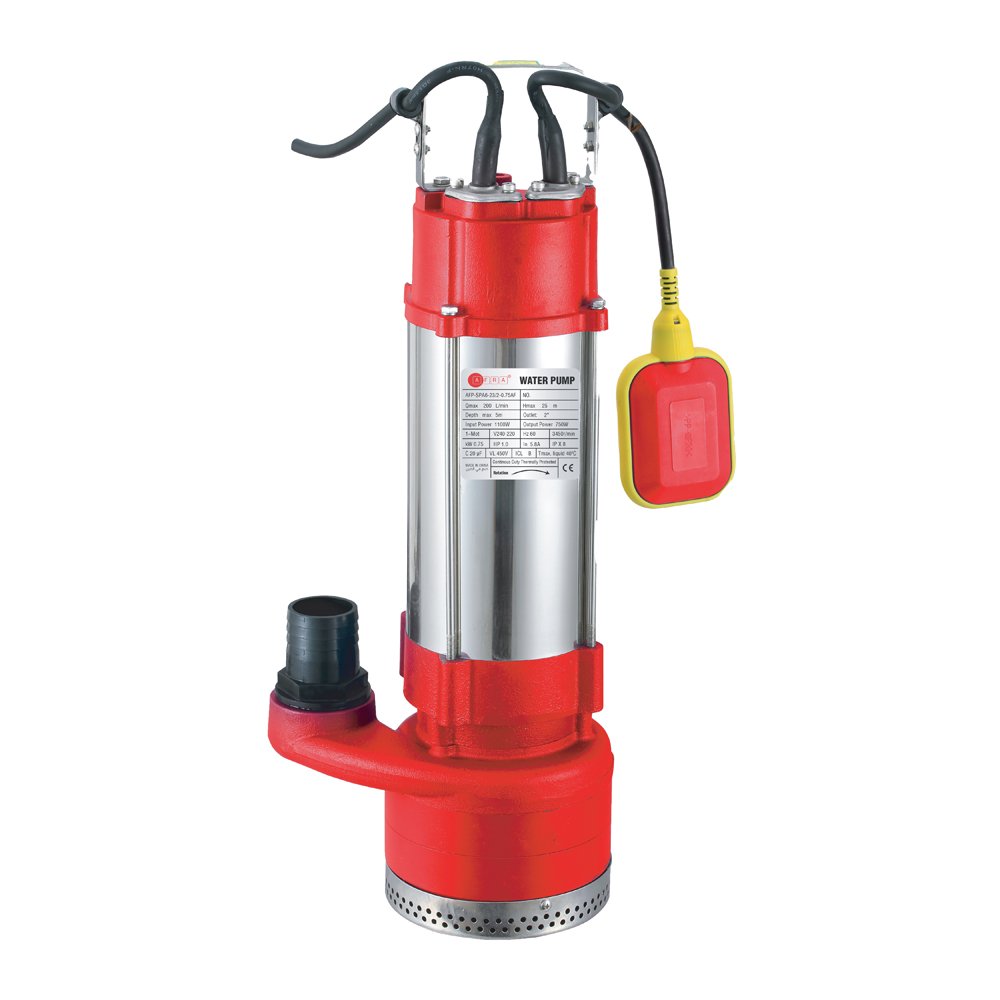

SUBMERSIBLE PUMPS AFP-SPA6 SERIES
or 4 interest-free installments by Afterpay. More Info
Pump Body
: Cast iron
Motor Housing: Stainless steel
Impeller
: Cast iron
Motor Shaft : Carbon steel, AISI304 SS
Mechanical seal: Ceramic/Graphite
Bearing
: 6204RZ/6202RZ(1.1KW&1.5KW&1.8KW)
Description
Description
This submersible pump is built with a robust cast iron pump body and a corrosion-resistant stainless steel motor housing, ensuring strength and durability in demanding environments. The impeller is crafted from carbon steel and AISI 304 stainless steel for efficient water movement, while the motor shaft is constructed from cast iron. A ceramic/graphite mechanical seal and high-quality 6204RZ/6202RZ bearings (for 1.1kW, 1.5kW, and 1.8kW models) provide long-lasting, leak-proof operation.
Powered by a two-pole induction motor, the pump is available in single-phase (220V/60Hz) and three-phase (380V/60Hz) versions. The motor includes Class B insulation, IP68 protection, a thermal protector, and supports continuous service (S1). Designed to perform reliably in ambient temperatures up to +40°C and liquid temperatures up to +60°C, the pump supports a maximum suction depth of 5 meters—making it ideal for residential, agricultural, and light commercial water management tasks.
