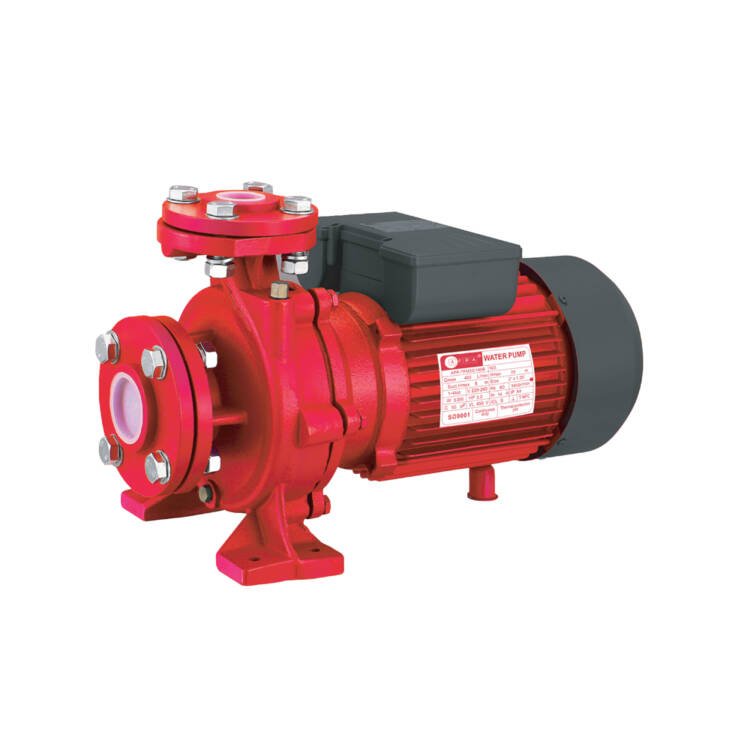

MONOBLOCK CLOSE COUPLED END SUCTION PUMPS AFP-TF / TFM SERIES
or 4 interest-free installments by Afterpay. More Info

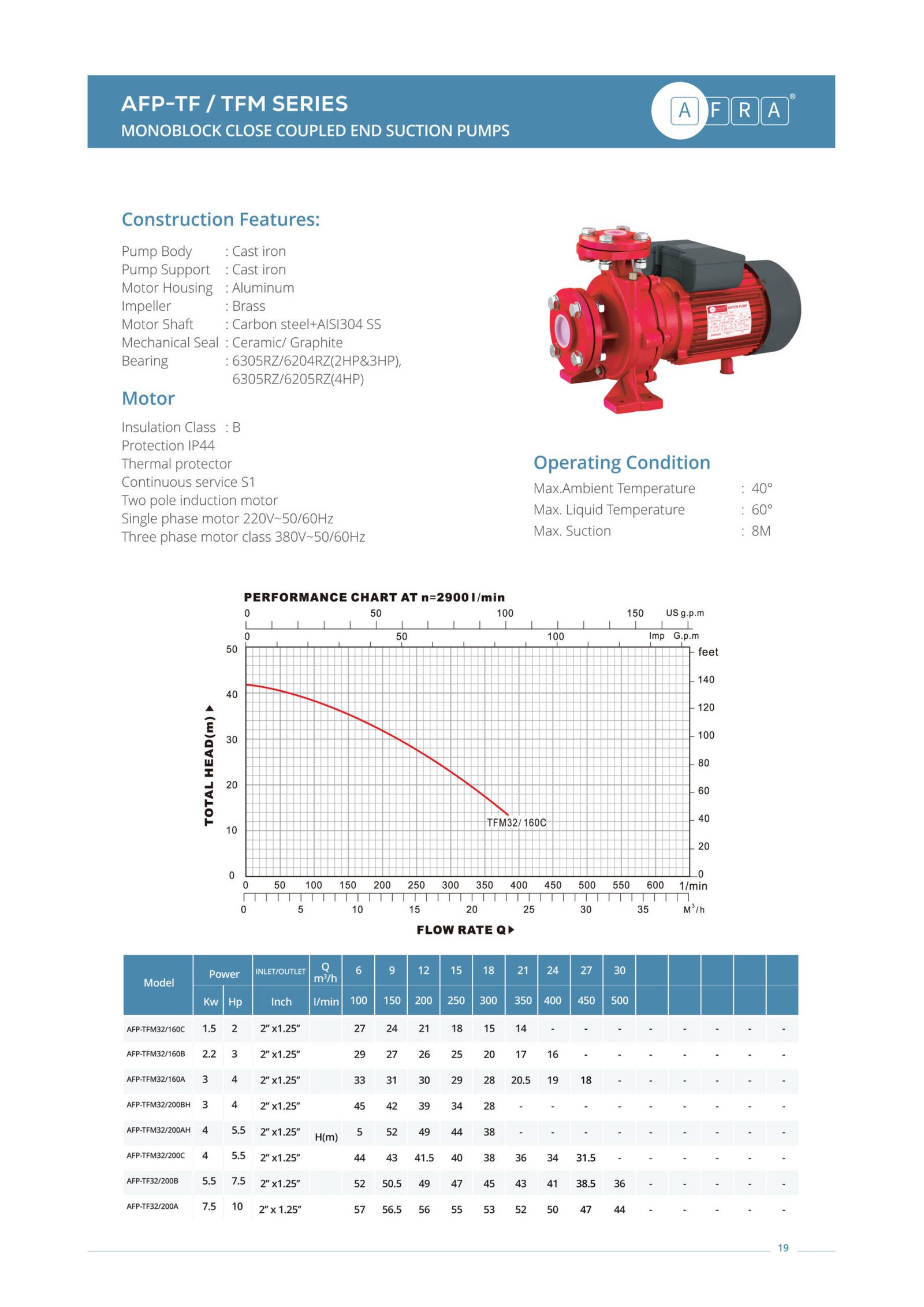

Construction Features:
Pump Body : Cast iron
Pump Support : Cast iron
Motor Housing : Aluminum
Impeller : Brass
Description
Description
The AFRA water pump features a robust construction designed for reliable and efficient performance. Its pump body and support are made from durable cast iron, providing excellent strength and longevity. The motor housing is crafted from aluminum, offering effective heat dissipation and corrosion resistance. The pump is equipped with a brass impeller for efficient water flow and durability. The motor shaft combines carbon steel with AISI304 stainless steel, ensuring mechanical strength and resistance to corrosion.
This pump uses high-quality bearings, including 6305RZ and 6204RZ for 2HP and 3HP models, and 6305RZ and 6205RZ for the 4HP version, ensuring smooth and reliable operation. It features insulation class B and an IP44 protection rating, along with a built-in thermal protector to prevent overheating. Designed for continuous service (S1), the pump operates with a two-pole induction motor and is available in both single-phase (220V50/60Hz) and three-phase (380V50/60Hz) configurations, making it suitable for a variety of residential, commercial, and industrial pumping applications.
