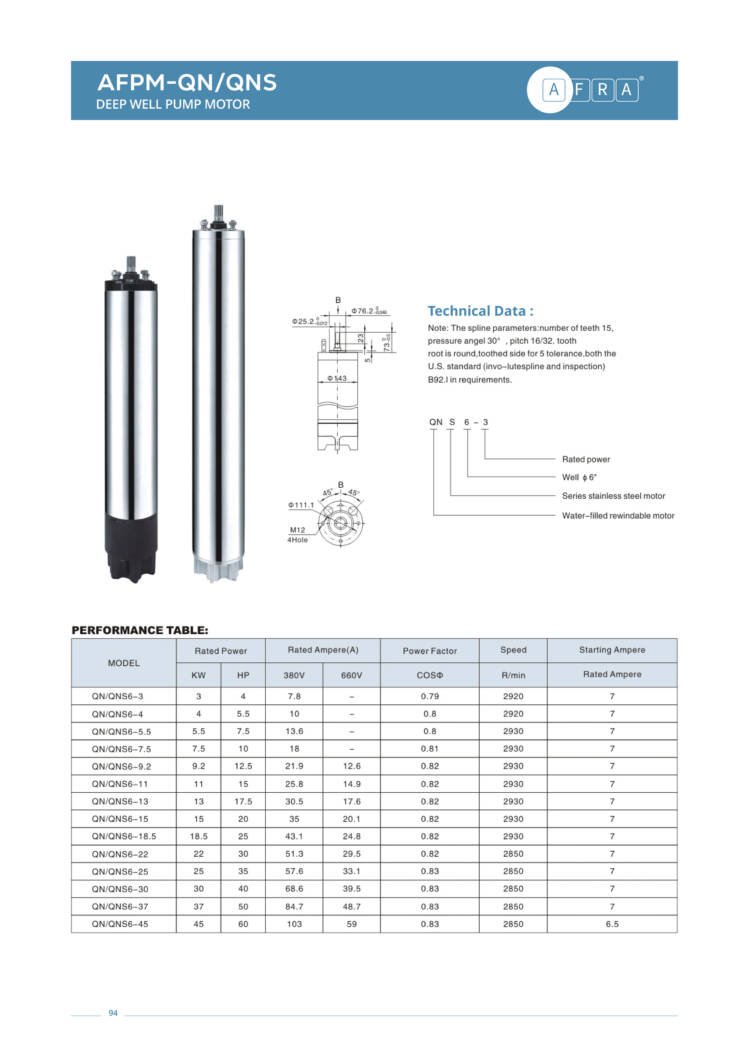

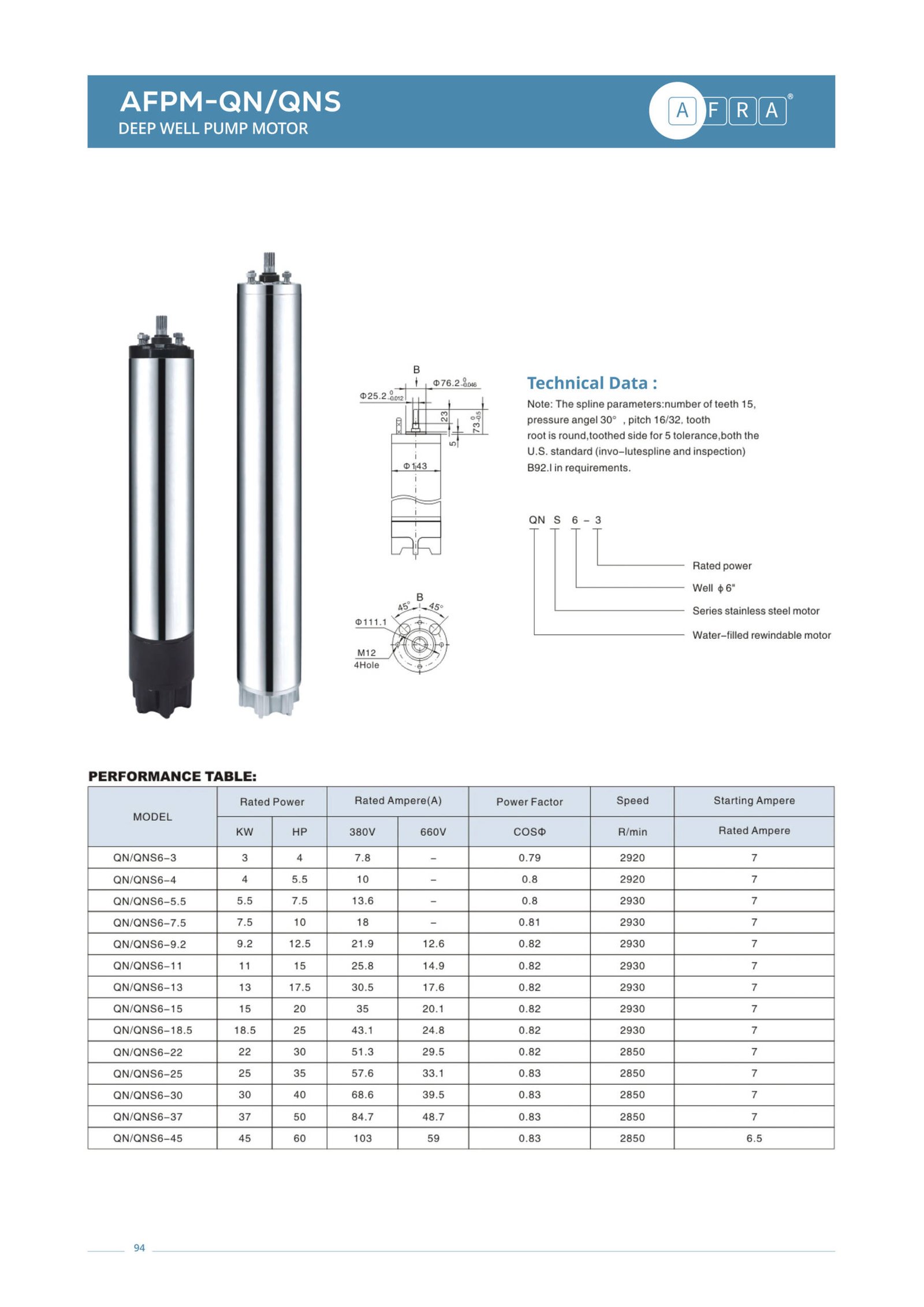

DEEP WELL PUMP AFPM – QN/QNS
or 4 interest-free installments by Afterpay. More Info
number of teeth 15
pressure angel 30″ pitch 16/32
tooth root is round
toothed side for 5 tolerance
both the U.S. standard (invo-lutespline and inspection) B92.1 in requirements.
Description
Description
The spline parameters include 15 teeth with a pressure angle of 30°, and a pitch of 16/32. The tooth root is rounded, and the toothed side conforms to tolerance class 5. The design and inspection adhere to the U.S. standard B92.1 for involute splines, ensuring precise dimensional and quality requirements are met.number of teeth 15
pressure angel 30″ pitch 16/32
tooth root is round
toothed side for 5 tolerance
both the U.S. standard (invo-lutespline and inspection) B92.1 in requirements.
