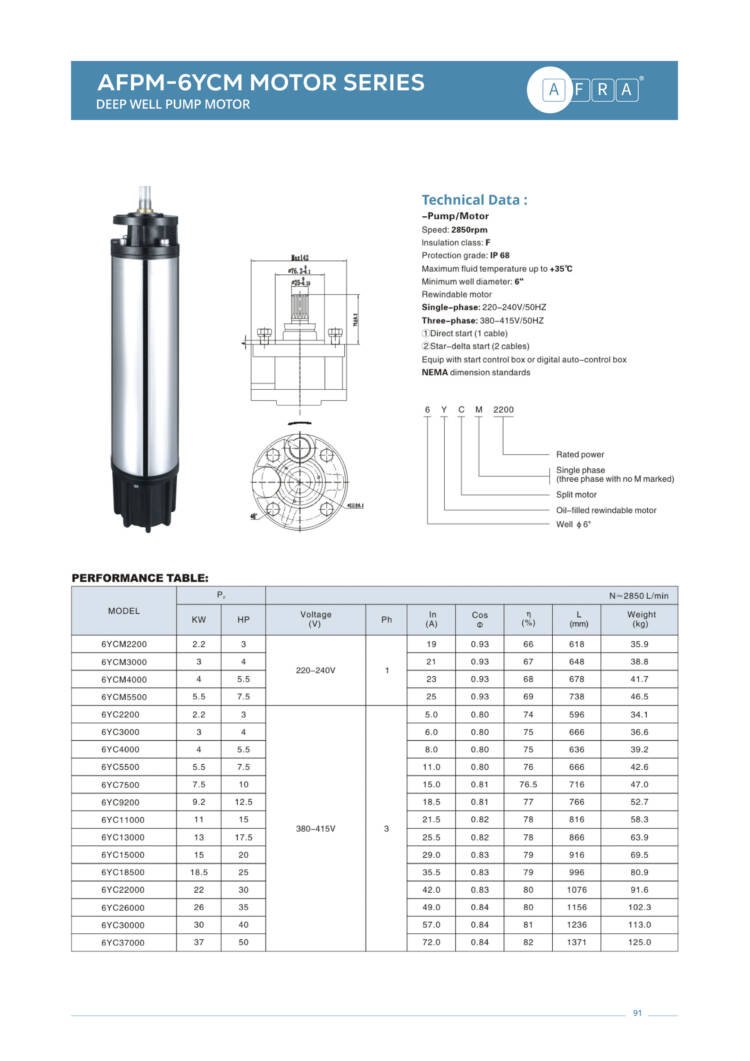

DEEP WELL PUMP AFPM – 6YCM
or 4 interest-free installments by Afterpay. More Info
Speed: 2850rpm
Insulation class: F
Protection grade: IP 68
Maximum fluid temperature up to +35°C
Minimum well diameter: 6″
Rewindable motor
Single-phase: 220-240V/50HZ
Three-phase: 380-415V/50HZ
1 Direct start (1 cable)
2 Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
Description
Description
This motor operates at a speed of 2850 rpm and features insulation class F, providing excellent thermal resistance for demanding conditions. It has a protection grade of IP68, ensuring full dust-tight sealing and suitability for continuous submersion in fluids with temperatures up to 35°C. Designed for wells with a minimum diameter of 6 inches, the motor is rewindable for easy maintenance and extended service life. It supports both single-phase (220-240V/50Hz) and three-phase (380-415V/50Hz) power supplies, with options for direct start using one cable or star-delta start with two cables. The motor can be equipped with either a start control box or a digital auto-control box for enhanced operation. It also adheres to NEMA dimension standards, ensuring compatibility and quality.
